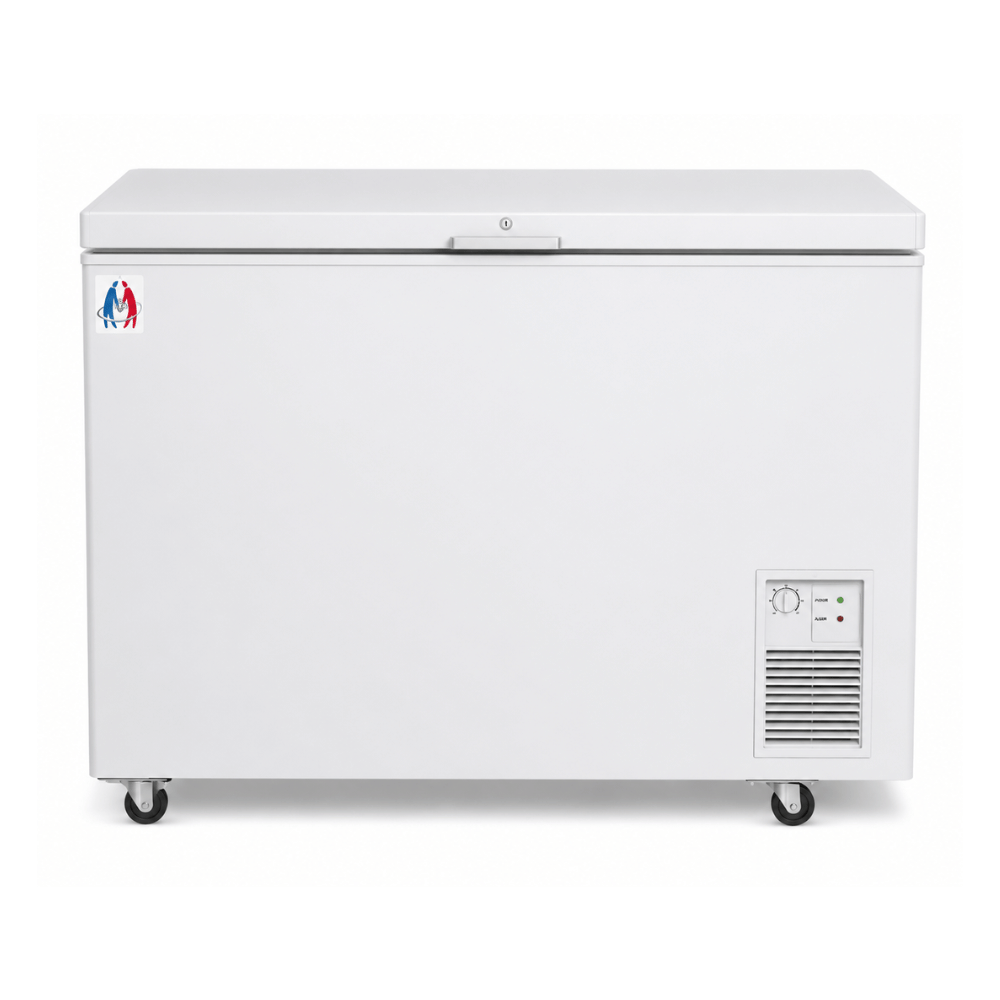

Esteem (Deep Freezer -20 Degree)

Laboratory Deep freezers play important role in safe storage of reagents, frozen vaccines and other temperature sensitive specimens for research purposes that require freezing temperature up to -20 degree. These freezers are ideal for routine storage of samples in the clinical, pharmaceutical and biomedical laboratories.

We are CE and ISO certified laboratory deep freezer manufacturers in India and our company designs laboratory deep freezers in minus 20 degree temperature range. These freezers are ergonomically designed to meet critical freezing storage requirements of life science laboratory, pharmacy and biomedical lab etc. These units are designed in either vertical (upright) or Horizontal designs. Each unit is fitted with digital temperature controller for easy temperature settings; other accessories that may include are temperature chart recorder, data logger, buzzer alarm and caster wheels etc. which is equipped with latest machines. Our engineering team has years of experience in deep freezer construction which enables us capable of designing any size of deep freezer you need for your application. Operating Ambient Temperature would be 20-45 degree C. designed as per the moderate Zone for different climate Condition. Available the model Single/Double door Deep freezer

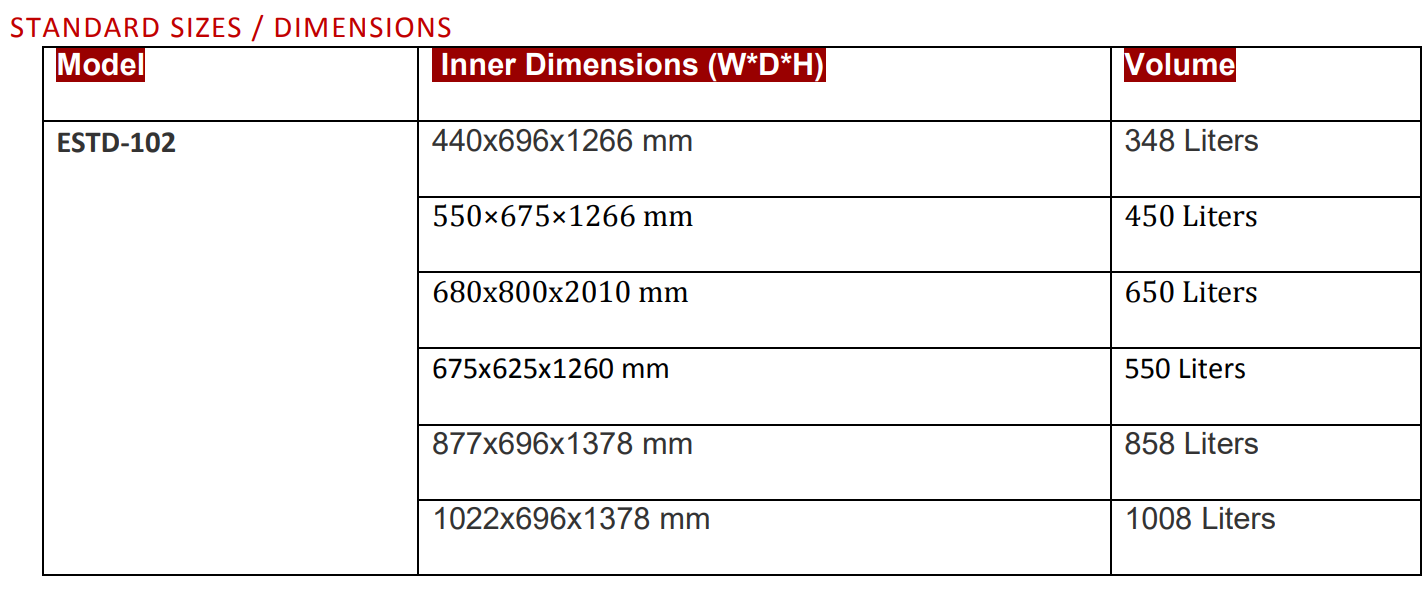

Capacity: Type Of Deep Freezer Chest/Vertical Available Size from 125 Ltr. up to 1008 Liters.

Temperature Controls/Range:

(A) Deep Freezer : -17 Degree C to -24 Degree C, Accuracy +/-1 Degree
(B) All Freezers: The Vaccine Load remain below -15° C during any continuous ambient temperature tests) or day/night cycling temperature tests).Combined units achieve this performance with no water packs in the water-pack compartment.
(C) Combined Freezers only: While freezing a quantity of water packs equal to its water – pack freezing capacity, the temperature of the full load of vaccines remain below- 5° C and return to below -15° C with in the 24 hour freezing cycle under the maximum continuous ambient temperature test Conditions of its rated computer zone. High density PUF insulation for longer holding time up to 5-6 hours

Temperature control:
a) Thermostat/Digital Controller.
b) (Micro) Digital Temperature Controller cum indicator
c) CFC/HCFC free refrigerant
d) (PUF) insulation
e) R290 Refrigerant

Instructions:
To be stored in A.C. Rooms & Use of AVS/Servo Controlled Voltage Stabilizer is strongly recommended.

Construction:
Made of sturdy galvanized material and internal casing of polished stainless steel.

Salient features:
Audio/Visual alarm provided for rise in temperature high &low.Castor wheels for case of mobility with breaking.Refrigeration system and electrical circuit easily serviceable. Suitable to work on 220/240V, AC Single Phase, 50 HZ, AC supply.Instrument should be with low energy consumption. Three shelves with wire baskets. Optional Four-Five shelves.

Power Supply :-
Power input to be 220-230VAC, 50Hz.

Warranty:
3Year Standard warranty Of The Equipment.

Temperature range:

Deep Freezer : -8 Degree C to -20 Degree C, Accuracy +/-1 Degree

Temperature control:

a)     Thermostat/Digital Controller.

b)      (Micro) Digital Temperature Controller cum indicator

c)      CFC/HCFC free refrigerant

d)     (PUF) insulation

Instructions:

To be stored in A.C. Rooms & Use of AVS/Servo Controlled Voltage Stabilizer is strongly recommended.

Construction:

Made of sturdy galvanized material and internal casing of polished stainless steel.

Salient features:

Audio/Visual alarm provided for rise in temperature high & low.Castor wheels for case of mobility with breaking.Refrigeration system and electrical circuit easily serviceable. Suitable to work on 220/240V, AC Single Phase, 50 HZ, AC supply.Instrument should be with low energy consumption. Three shelves with wire baskets. Optional Four-Five shelves

Warranty:

2 Year Standard warranty Of The Equipment
