Product Code: PEST.HS -111

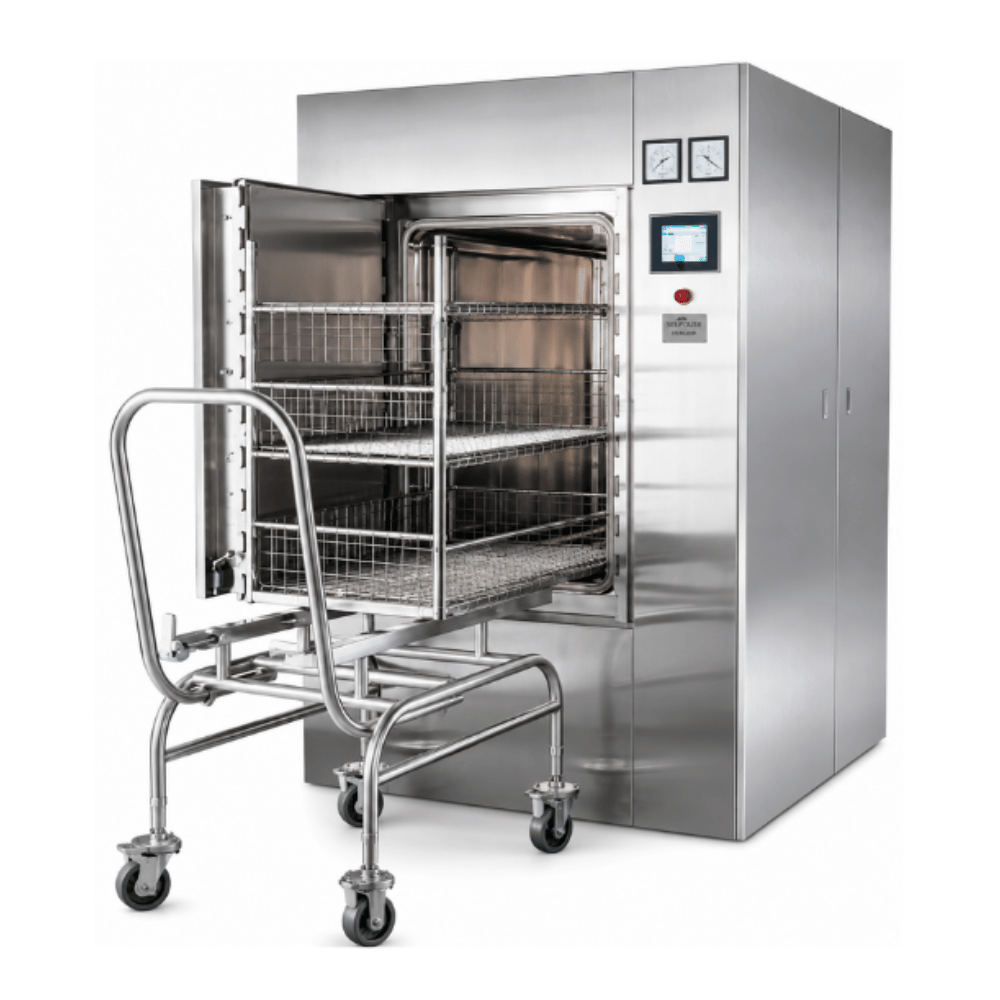

- Class-100, GMP MODEL Basic unit with double door
- MOC (Chamber, Shelves & Trolleys) : SS304
- Cooling attachment for rapid cooling
- PLC with TOUCH SCREEN
- PLC based controlled panel with 8 point Temp.(8 Probes for temp. at different points with provision to insert additional probes for validation.)
- Temp. variation inside the chamber will not be more than 5° C (Hottest point and coldest point )
- Audio visual alert upon cycle interruption/error in operation or completion of cycle.
- 2 Nos. USB port & 1 Nos. Ethernet port.
- High temp.Class100 HEPA filter inside the chamber & at inlet & exhaust line
- Temperature range upto 300 degree C.
- Trolley 2Nos
- Door opening and closing will be by horizontal sliding mechanism
- Drive to the door will be given by pneumatically operated cylinders
- Door safety arrangement will be provided for obstruction during the closing operation
- The door movement will be fully controlled by PLC
- Door sealing will be done by suitable vacuum type silicon gasket.
- Both the doors will not get opened at the same time. Interlocking arrangement and indicating lamp shall be provided.
- Door opening temperature will be settable after completion of sterilization cycle.
- MOC (Chamber, Doors, Carriages & Trolleys) : SS 304
- Load will be placed on perforated removable shelves placed directly in the chamber. Dry heat will be distributed uniformly in the chamber.
- Trolley (SS 304) with wheels for loading and unloading of the material will be provided (2 Nos.) and Rack (SS 304) along with three perforated shelves will be provided for holding the material for sterilization. Rack will have at least 6 adjustable provisions for adjusting height of shelves.
- All nozzles and pipelines will be interconnected with sanitary fittings and orbital welded.
- SS Heaters accessed form non sterile side
- Programmable microprocessor support
- Fully auto control with data printing system & printer
- Gauge for positive pressure
- Heater is controlled through auto control system of reputed bran.
