Product Code: PESTM-102

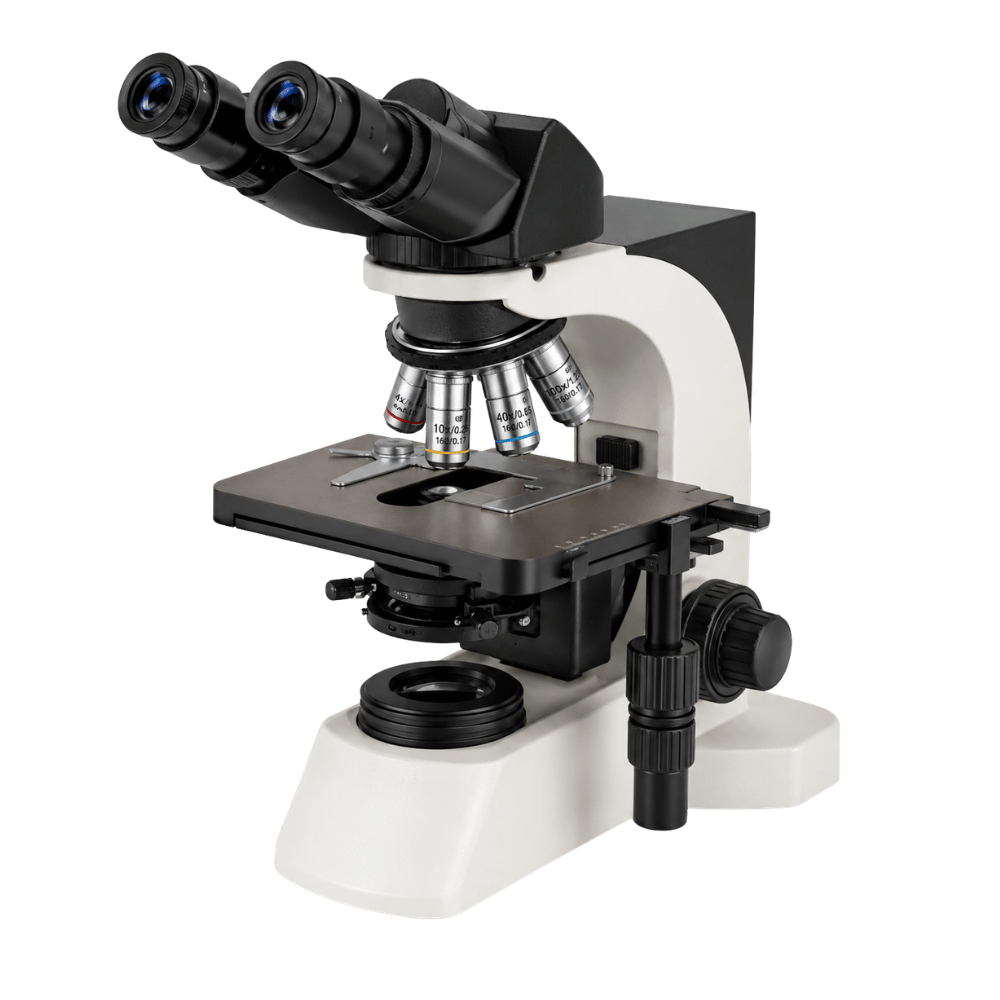

Our microscope is equipped with Color Corrected Plan Optical System (CCPS) to satisfy the laboratory professional. CCPS has corrected chromatic aberration on the traditional optical system, providing a significant development in optical performance and reliability. It is the first choice of professionals.
- Pair of high eye-point PL10x eyepieces with eye caps
- 30 degrees inclined head rotatable 360 degrees
- Binocular Eye tubes
- 132 x 140mm graduated mechanical stage, 76 x 50mm range of traverse
- 4-plan achromatic objective, 4x (N.A. 0.10), 10x (N.A. 0.25), 40xR (N.A. 0.65), 100xR oil (N.A. 1.25)
- Swing out N.A. 1.2/0.22 achromatic condenser
- Built-in Koehler illuminator systems
- Coaxial coarse and fine focusing tension control knobs
- Variable intensity halogen illuminator, 6V / 20W wide range voltage transformer applied to use in 90 – 240V outlets for international market.
- Focusing stage and light intensity knobs at users’ fingertips to minimize fatigue
- Replacement bulb, fuse and immersion oil
- Replacement lamp: MA07
- Shipping weight: 12 lbs
- Optional upgrade:
a) PL15x or PL 20 high eye-point eyepiece
b) Turret phase contrast set - PC and Printer compatible
- Provided with a digital camera interface
