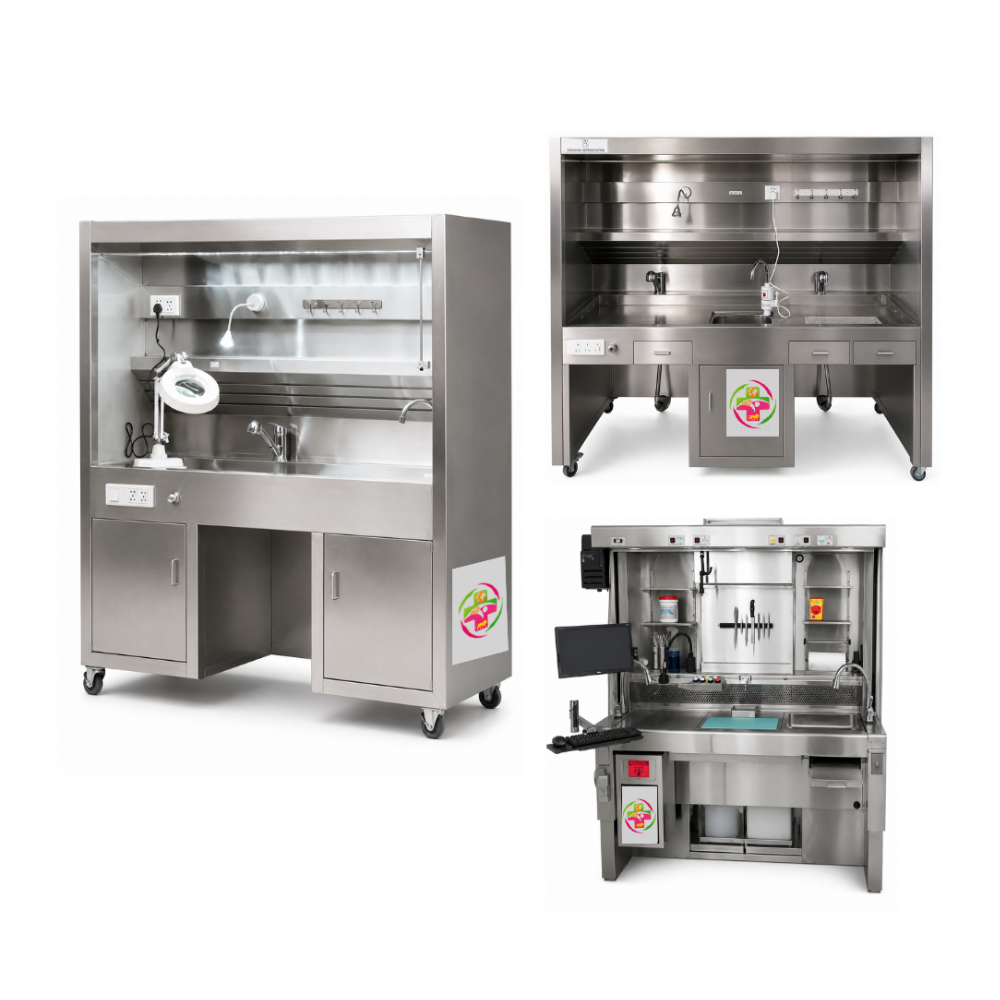

Grossing Station

• Low Overall height of the upper structure increases leg room

• Stable, self-supporting under carriage with adjustable leveling screws

• Construction is of complete Body made of S.S. 304 as per GMP Std.

• Workstation has a large surface area

• Seamlessly welded basin measuring 400mm x 350mm x 165mm

• Built in U.V. Germicidal?  Light • Exhaust duct flange

• Stable, perforated S.S. 304 working plate (Optional)

• Formalin dispensing tank with sieve insert (Optional)

• Poly Ethylene cutting table board

Size:

Work Area: (L x W x H)

SIZE-     5′ x 5′ x3′

SIZE-     5′ x 3′ x 3′

SIZE-     5 ‘x 2 ‘x 3’

As per customer requirement customization are available.

Overall Size

5’x 5′ X 6.5′

Integrated illumination with UV germicidal light
Grossing tables would be specially designed in accordance with International Standards and guarantee a Laboratory environment free of pollutants while slicing, and must be suitable for small sections.
Air flow must travel over the entire working area and sucked out so as to provide optimal removal of unsanitary vapours.
MAC (Maximum Allowable Concentration) values for formalin would be below target throughout the entire suction covered worked area.
The contaminated air & formalin vapours from work table will be sucked out by built-in high efficiency blowers.· These are provided with: SS table, S.S. Sink, Hot-Cold Mixer taps, lighting system, swievel-magnefier, 2 Nos. metric rulers. 2 Nos shelves, storage drawer above the work table, storage compartment under the table with sliding doors, Towel ring, Tissue paper holder,?snd waste bin.

These are provided with: SS table, S.S. Sink, Hot-Cold Mixer taps, lighting system, swievel-magnefier, 2 Nos. metric rulers. 2 Nos shelves, storage drawer above the work table, storage compartment under the table with sliding doors, Towel ring, Tissue paper holder,?snd waste bin.

Accessories:– (a) Built in U.V. Germicidal Light b) Exhaust duct per running ft.
