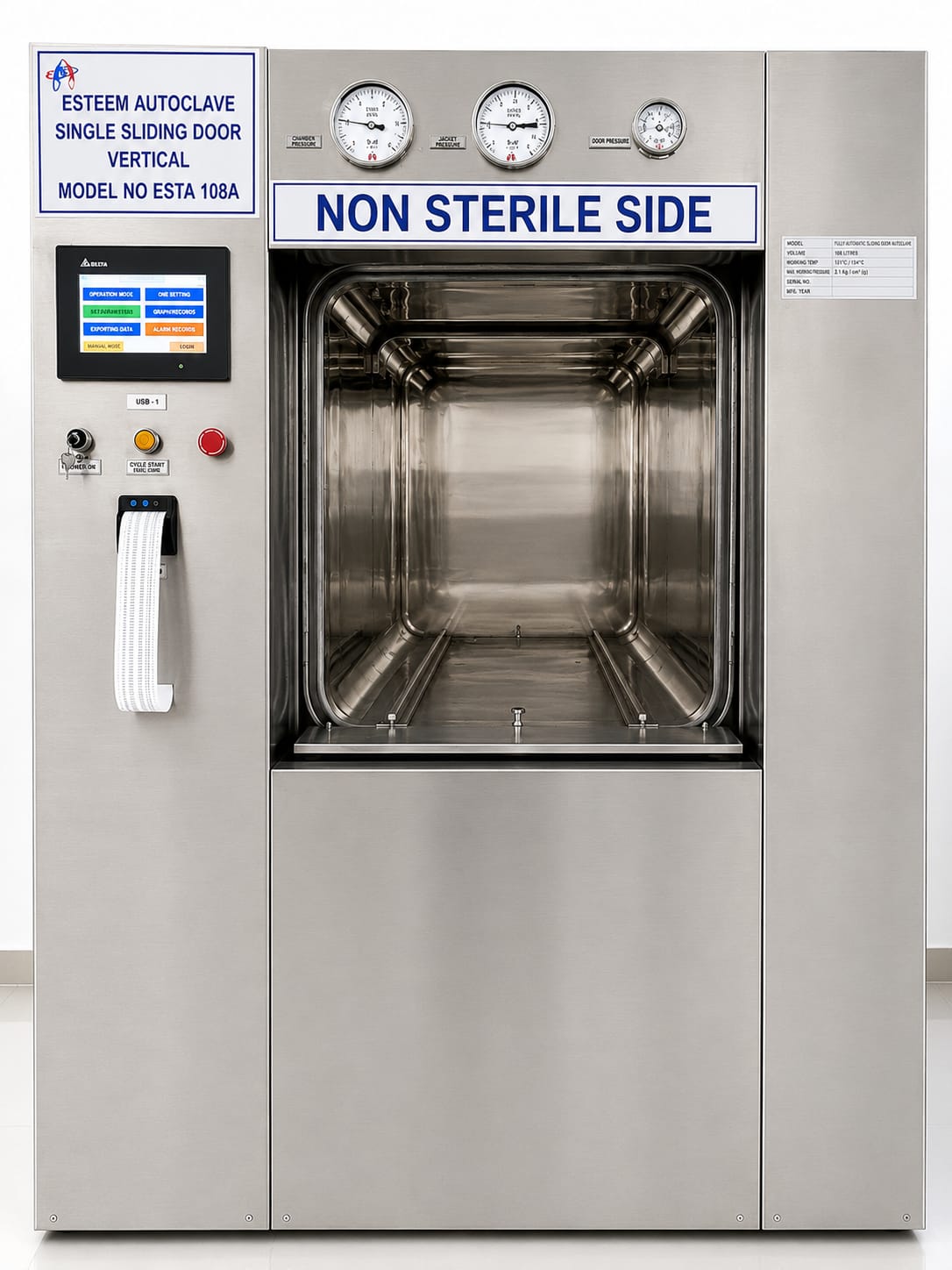

Sliding Single/Double Door Autoclave

General Information –
 SS construction with internal contact parts of SS 304.
 SS construction with Jacket parts of SS 304.
 The unit is mounted on sturdy SS tubular stand with level adjustment facility.
 The jacket volume is comparatively large (depth of 50 mm) which ensures better heat distribution in chamber.
 No drives are required. For sliding door movement, pneumatic cylinders are used.
 Autoclaves with hinged doors have mechanical pressure locking device which prevents opening of doors under pressure. The quick throw lever mechanism ensures further safety.
 Door interlocking provision prevents opening of doors under pressure as well as opening of both doors at the same time – after sterilizing cycle only aseptic side door can be opened. Besides this interlocking, an visual indication is also provided.
 The unit has two safety valves, on the chamber and one on the Jacket, besides having a pressure
switch which shuts off steam supply to the chamber.
 PLC’s used are Imported and compatible with P C. SCADA system can be incorporated for remote monitoring OR monitoring, controlling and data acquisition if required (Optional).

 External communication RS232
 Continuous monitoring of temperature and pressure
 Over-pressure safety release valves (Spirax Sarco)
 Emergency stop button.
 Security key or code for enabling, operation.
 Protection against over voltage, over current surges, fluctuations, spikes and leaks.
 Electrical switchgear of SIEMENS / L & T / TEKNIK make. Cables of ISI brand.

Salient Features
 Door movement Vertical
 Smooth Noiseless Door Operation
 No Human Effort Required to Operate the Door
 Aesthetic Full S.S Flush Mounting
 Stainless steel Piping
 Door Locking System under Pressurized Chamber Condition
Double door Steam Sterilizer, Sliding Door, Rectangular chamber

VIII. UTILITIES –
 Raw steam supply (If not opted for inbuilt steam generator S.S 304 )
 Water drain pipe on floor level.
 Steam drain pipe of ½” dia.
 Three phase with compulsory neutral and ground.
 Compressed Air of upto 6kg/cm2 (If not opted for inbuilt compressor)

Scope of Supply:-
1) Basic Unit
2) S. S Carriage 1no.
3) S. S Floor Trolley 2 nos.

Automation –
Fully Automatic and 3 level password protected PLC based control system
Including Pneumatic actuated Valves, Solenoid
Valves, Pressure Transmitter, S.S control Panel etc
5) Vacuum Pump ( Water ring type ) with S.S condenser
Installation and commissioning charges

SALIENT FEATURES OF ESTEEM AUTOCLAVE
I. Autoclave will be in sturdy construction using plates of appropriate thickness which prevents buckling
under vacuum or bulging due to pressure. Made to confirm to EN 285 or HTM 2010 performance
requirements.
II. Fully automatic by means of PLC based controls, which operate pneumatically actuated solenoid
valves. Provision of four different cycles and programs :
1. Standard cycle
1a. Heat up – ster hold (1210 C) – exhaust
1b. Heat up – ster hold (1340 C) – exhaust

Suitable for standard and custom sterilization cycles at 134 °C and 121 °C, with pre-vacuum,
conditioning/sterilization and post-vacuum/drying phases.
The technique uses the method of gravity air removal to ensure uniform steam distribution and
penetration. Steam trap equipped with air vent ensure maximum air removal.
Useful for sterilization of glass containers i.e. ampoules, vials, glass bottles etc.
It is also useful for Sterilization of glass wares, utensils, vessels, instruments, rubber articles linen etc. in Laboratories and hospital.

2. HP HV cycle
2a. 3 pre ster vacuum pulses – heat up – ster hold – exhaust
2b. 3 pre ster vacuum pulses – heat up – ster hold – exhaust – post
ster vacuum pulsing for drying Preset cycles, including at least for instruments (134 °C), textiles (134 °C), mixed load (121 °C and/or 134 °C), heavy load (134°C), prions (134 °C) plastic/rubber (121 °C), liquids (121 °C and/or 134 °C), glassware (121 °C and/or 134 °C), fast cycle (134 °C), Bowie-Dick test, vacuum and self test.

This technique uses near 100% air removal from sterilization chamber which results in better
temperature uniformity in the chamber because of the absence of air pockets i.e. cold spots.
This technique increases the penetration of steam in porous products from which removal of air is
difficult. Vacuum drying at the end of sterilization hold period ensures drying of the material which has been sterilized. This cycle is useful for garments, fabrics, drying rubber bungs vessels machine parts etc.Leak Test Cycle for periodic testing of door integrity and pipeline connections & detecting leakage ampoules. Another HP HV cycle with post vacuum pulses can be provided, if required, for special purpose.

Steam : Dry saturated steam at 3.3 kg/cm2 Through your P.R.V

Air : Compressed air through F R L will be required at a pressure of 6 kg/cm2 for operating
pneumatic valves and door.

Electrical immersion heaters : 36 KW

Vacuum : Full / as required

Water : Water for water ring vacuum pump

Power supply : Three Phase, 440 Volts. AC,50Hz

Loading & Unloading Accessories : Supply the all require accessories make of SS304/SS316 as
Buyer /Tender requirement.
