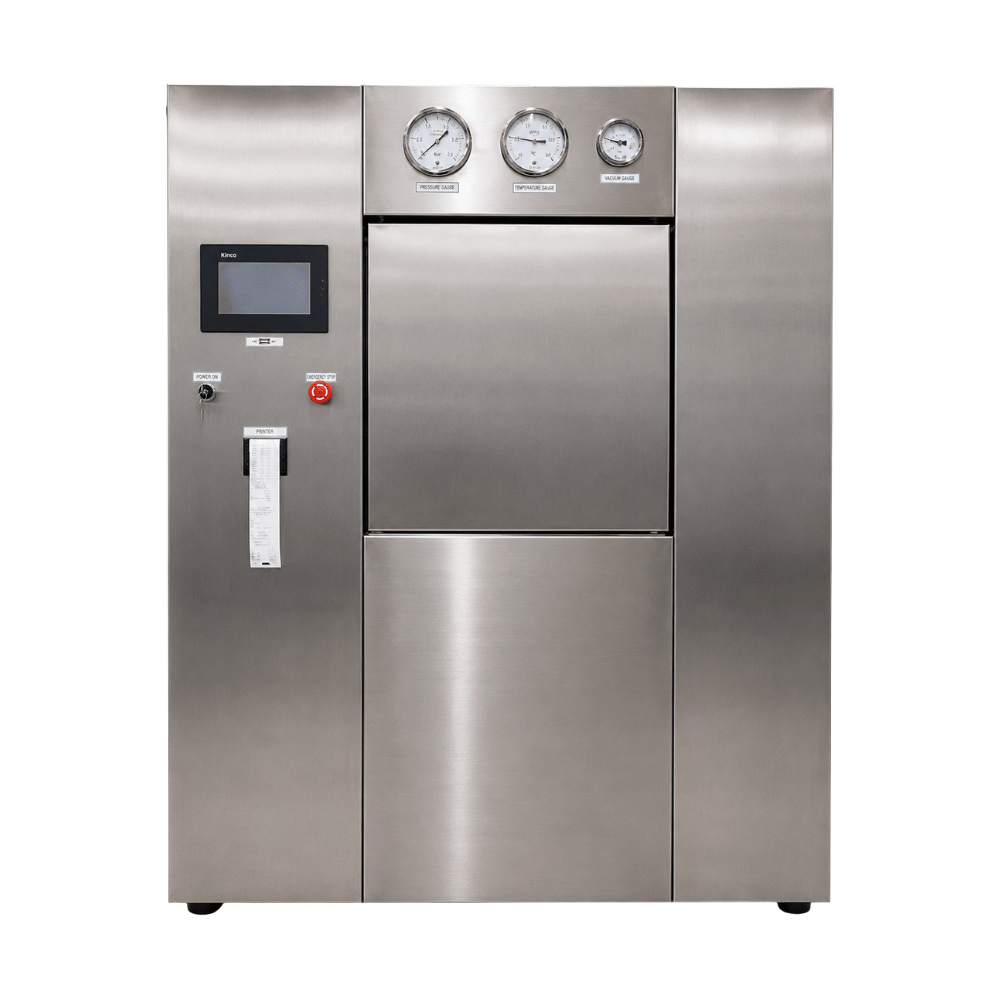

Steam sterilizer, 900l & CSSD

Steam Sterilizer Autoclave is a fully automatic, PLC-controlled hospital sterilizer designed for CSSD, operating theatres, and healthcare facilities. It is intended for sterilization of surgical instruments, linen, textiles, glassware, rubber and plastic materials using saturated steam under pressure.

Key Features

• Large-capacity hospital steam sterilizer suitable for high-volume sterilization needs.
• Available in single-door or double-door pass-through configuration for clean and sterile area separation.
• Constructed with SS 316L chamber and jacket and SS 304 external panels for durability and corrosion resistance.
• PLC-based automatic operation with touchscreen controls and programmable sterilization cycles.
• Standard programs include:
  • 134°C sterilization cycle
  • 121°C sterilization cycle
  • Bowie-Dick Test
  • Leak Test
  • Vacuum drying cycles
• Built-in printer and electronic cycle recording for process documentation and traceability.
• RS232 connectivity and optional SCADA integration for monitoring and data management.
• Safety interlocks prevent door opening under pressure and prevent both doors from opening simultaneously.

Accessories Included

• Stainless steel loading carriage.
• Two stainless steel transport trolleys.
• Water-ring vacuum pump with condenser.
• Installation and commissioning support.

Specifications:

HIGH-PERFORMANCE PASS-THROUGH STEAM STERILIZER

Model Variant: Fully Automatic CSSD Series (900L)
Compliance Standards: CE-Marked, EN 285, EN ISO 17665-1

PRODUCT OVERVIEW

A premium, microprocessor-controlled 900-Liter steam sterilizer designed for heat-resistant materials, including surgical instruments, textiles, and rubber products. Engineered for modern Central Sterile Supply Departments (CSSD), it features an integrated clean steam generator, a water-saving vacuum system, dual-touchscreen control, and complete HIMS connectivity.

KEY TECHNICAL FEATURES

• Premium Architecture & Design
  • Chamber Geometry: Rectangular prism with rounded corners for easy cleaning and optimized loading (Volume ≥ 900L).
  • High-Grade Metallurgy: Chamber, door, and jacket built from premium AISI 316L / 316Ti stainless steel; external panels in AISI 304.
  • Pass-Through Security: Double automatic sliding doors (electric or pneumatic) with reliable silicone sealing gaskets. Includes high-sensitivity obstruction safety buffers and automatic door-reverse mechanisms.
  • Thermal & Noise Control: Full jacket system with high-efficiency insulation to maximize heat retention, minimize energy loss, and reduce noise.
• Advanced Control & Dual Touchscreens
  • Dual Displays: Large color touchscreens (≥ 5.7″) mounted at eye level on both loading and unloading sides for seamless operation and cross-contamination prevention.
  • Expanded Programs: 8 fixed standard programs, 12 customizable slots, plus dedicated Bowie-Dick, vacuum leak, and service/maintenance cycles.
  • Security & Calibration: Password-protected user parameters (times, temperatures, drying). Features an advanced calibratable measurement system with ergonomic pressure manometers for chamber and jacket.
• Utility, Steam & Eco-Efficiency
  • Integrated Clean Steam Generator: High-capacity internal electric steam generator (≥ 61 kW) made of stainless steel with a protective heat-resistant cover and a direct steam injection system.
  • Eco-Vacuum System: Water-ring vacuum pump equipped with a built-in water-saving system and noise-reduction technology for faster, quieter cycles.
• Data Network & Security Management
  • Monitoring & Tracking: Device controls track, compare, and record all sensor values, cycle names, numbers, process stages, and process times.
  • HIMS Integration: Native Ethernet port for easy network integration, remote monitoring, data communication, and automated cycle archiving.
  • Reporting: Complete reporting engine for tracking total operations and error codes, selectable by specific dates.

• Material Handling Hardware:
  • 2x Heavy-Duty Loading-Unloading Process Carts
  • 2x Ergonomic 2-Level Loading Racks (optimized for the 900L chamber)
• Initial Consumables Kit:
  • 250x Ready-to-Use Bowie-Dick Test packs
• Turnkey Deployment: Full delivery, site positioning, separation wall installation (stainless steel pass-through panels), testing, validation, and full operational training.
